Metallography

Fractography

  • Microstructure examination
  • Electron probe microanalysis
  • Fractography – fracture surface analysis
  • Determination of area fraction of phases by means of image analysis
  • Measurement of grain size
  • Metallographic determination of non-metallic inclusion content
  • Microscopic measurement of layer thickness
  • Metallographic evaluation of the microstructure of cast iron
  • End quench hardenability tests
  • Measurement of hardness (in our laboratories and on site)
  • Macroscopic investigation of machine components

The metallographic laboratory is testing laboratory no. 1476 accredited by the Czech Accreditation Institute:


Equipment of the laboratory

  • Optical (light) microscopes Nikon, Carl Zeiss (magnification 50x - 1000x) and Keyence, bright and dark field, Nomarski DIC, fully automatic motorized stage (enable documentation of large areas with multiple field of view), software for digital image analysis processing
  • Durascan automatic micro hardness tester (Vickers load HV 0.01 - HV10, Knoop hardness)
  • Instrumented nanoindentor - NanoTest Vantage: Load range: from 10 μN to 500 mN (3 nN resolution)
  • X-ray diffractometer BRUKER D8 Discover - quantitative and qualitative phase analysis, measurement of internal stresses, texture evaluation
  • JEOL Scanning Electron Microscopes
  • Detectors: secondary electrons (SE), backscattered electrons (BSE), INCA and EDAX energy dispersive analysis (EDS) detectors, EBSD high speed EDAX camera
  • Other equipment - ion polisher for sample preparation for scanning electron microscopy - analysis of grains and sub-grains, low and high angle boundaries, textures and for crystallographic identification of phases
  • Equipment for on-site analysis – mobile polisher, mobile microscope, replicas, hardness measurement at the customer
Grains Weld

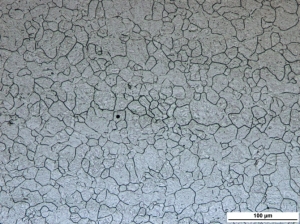

Microstructure of quenched and tempered steel etched to reveal prior austenite grain boundaries

Close-up view of weld



Macrograph

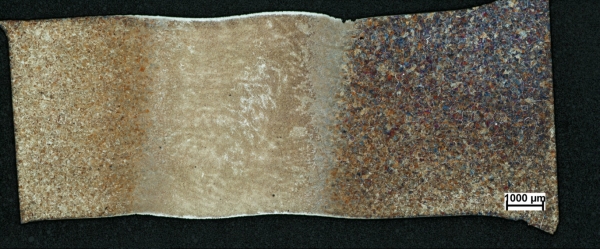

Longitudinal section through a specimen after physical simulation of thermomechanical treatment. Specimen length: approx. 15  mm; specimen width: 6  mm. This micrograph was taken using an optical microscope with an automatic stage and pasted together from 28 fields of view.
